Product Description
Features of products
1. Wireless IR remote control Can set up all SRNE solar street
lamps controllers.
2. The data communications base on the multiple handshake protocol
and
compression algorithm which made the data transfer fast and
accurate.
3. Work on two batteries (Model: AA).
4. LCD indicator shows the parameter and data.
5. The remote control will enter intelligent sleep state after One
min no any operate,
and press any key to resume.
6. Low-energy sleep mode, less than 0.1uA.
7. Fast wake-up function.
8. Battery capacity indicator.
9. Emergency light and hazard lights.
10. with ergonomic design, suitable for the hand-held operation.
Parameter of product
Item | Name abbreviation | data scope | Name describe | step-length | unit | Factory Default |
a | 1st time | 0 ~ 15H | The first working time | 1H | hour | 4 hour |
b | 1st power | 0 ~ 100% | The first working time power | 10% | Power (percentage) | 100% |
c | 2nd time | 0 ~ 15H | The second working time | 1H | hour | 0 hour |
d | 2nd power | 0 ~ 100% | The second working power | 10% | Power (percentage) | 70% |
e | 3rd time | 0 ~ 15H | The third working time | 1H | Hour | 4 hour |
f | 3rd power | 0 ~ 100% | The third working power | 10% | Power (percentage) | 50% |
g | Mor time | 0 ~ 15H | Lighting time in the morning | 1H | Hour | 0 hour |
h | Mor power | 0 ~ 100% | Lighting power in the morning | 10% | Power (percentage) | 30% |
i | L-Con-V | 5 ~ 11V | Light control voltage | 1V | Volt | 5V |
j | L-Con-DT | 5 ~ 50Mins | Light control delay time | 5M | Min | 5min |
k | L-Current | 0.15~ 3.42A | LED load current | 0.03A | A | 0.30A |
l | L-On-EN | 0 ~ 1 | Lights on every night | 1 | 0:Off1:On | 1 |
m | Smart Power | 0 ~ 1 | Smart power control | 1 | 0:Off1:On | 0 |
n | Over-DV | 9.8 ~ 11.8V | over-discharging protected voltage | 0.2V | Volt | 11.0V |
o | Over-DRV | 12.0 ~ 13.0V | over-discharging recover voltage | 0.2V | Volt | 12.6V |
p | Boost-CV | 14.2 ~ 15.0V | Ascending charging voltage | 0.2V | Volt | 14.4V |
Technical parameters of products
Battery model | (AA)× 2pcs |
power supply voltage | 3.0V |
Effective distance | <5m |
power consumed of sleep mode | <0.2uA |
Normal power consumed | 5mA |
Send instant power consumed | <50mA |
Light consumption | 12mA |
Backlight consumption | 15mA |
Size | 122mm×61.5mm×22mm(L×W×H) |
Weight | 60g(without the battery) |
Auto power off time | 1 min |
Backlight time | 10 S |
Lighting time | 10 S |
2000mAH battery setting quantity | 50000 pcs(back light and lights both are closed) |
Working temperature | -25℃ ~ 55℃ |
Detail of products
Key operate instruction
1.Power on: press any key to start up, then the remote control be
rouse and executive the function under the key u press.
2.Power off: System will power off automatically then enter
intelligent sleep state after 1min later no any operate.
3.Browse the parameter: after power on, press “+” and “–”key can
browse the parameter preset before.
4. Model Selection: after power on, Press the "+" "-" key to
highlight the stays on the models to choose, then short press "set"
key to confirm, remote control will shedding for 1 second, then
enter into the "parameter setting" interface.
5. Modify the parameters: Browse to the parameter which u want to
set, press ”set” key, the data begin flash, then press “+” and
“–”key to adjust. Setting over, press the ”set” key to confirm.
6.Sending parameter: After all the parameters are set up, aim at
the solar charge controller and press the “send” key. If sending
successfully, three LED lights of thecontroller will flash, at the
same time the remote control will keep a long sound; If failed, the
remote control will keep three short sound and prompt delivery
failure.
7.Read the state: aim at the solar controller and press the “state”
key, the remote control will read the running state of the
controller, If reading successfully, the remote control will keep a
long sound and store the data; If failed, the remote control will
keep three short sound and will show the old status.
8.Read the parameter: aim at the solar controller and press the
“parameter” key, the remote control will read the setting value of
the controller. If reading successfully,the remote control will
keep a long sound and store the data(if press the “send” key now,
the store parameter will be send immediately) ; If failed, the
remote control will keep three short sound and will show the
parameter which u are in setting.

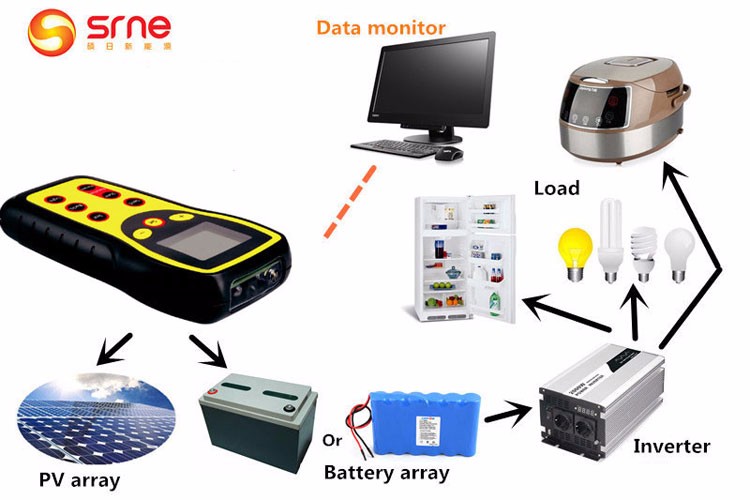

Product applications
Certificete of products
Company Information
Shenzhen Shuori New Energy technology Co.,Ltd.has founded in 2009
with independent intellectual property,right and brand .We set
R&D,manufacture,sales and service as a whole ,specialized in
solar controller,system solutions,application system and
engineering service,solar PV power supply related technology
development of national high tech enterprise.
