Multi Function Off Grid Solar Charge Controller 10A SRNE Classic SR
LM10A
SR-LM10A charge controller SRNE classic model 10A
Features
1. 12V/ 24 V system voltages are automatically recognized.
2. An upgraded 3-stage PWM charging algorithm is adopted.
Application of an equalizing charging to the battery periodically
or when over discharged, can effectively prevent the battery from
non-equalization and sulfuration, thus extending the battery's
service life.
3. With temperature compensation employed, charging parameters can
be automatically adjusted.
4. A wide range of load working modes facilitate the product's
application to different types of load.
5. The product provides overcharge, over-discharge, overload
protection, as well as short-circuit protection.
6. By virtue of an advanced load starting method, large-capacitance
loads can be started smoothly.
7. The product provides a dot matrix graphic LCD screen and a
human-machine interface with a key.
8. The user-friendly design of browser and dynamic interfaces
ensure convenient and intuitive operations.
9. Boasting an industrial grade design, the product can function
well in various tough conditions.
10. TVS lighting protection is adopted.
Main Advantages
LCD display , easy to operate on LCD screen
Multi stage charging (3-stage charging , parallel charging and
equalized charging function)
BTS – Battery remote temperature sensor terminal
Enable to charge Li-thium, Gel , lead-acid battery
With RS485 & USB communication port
Protection: PV array short circuit, PV reverse polarity, Battery
reverse polarity, Over charging, Output short circuit

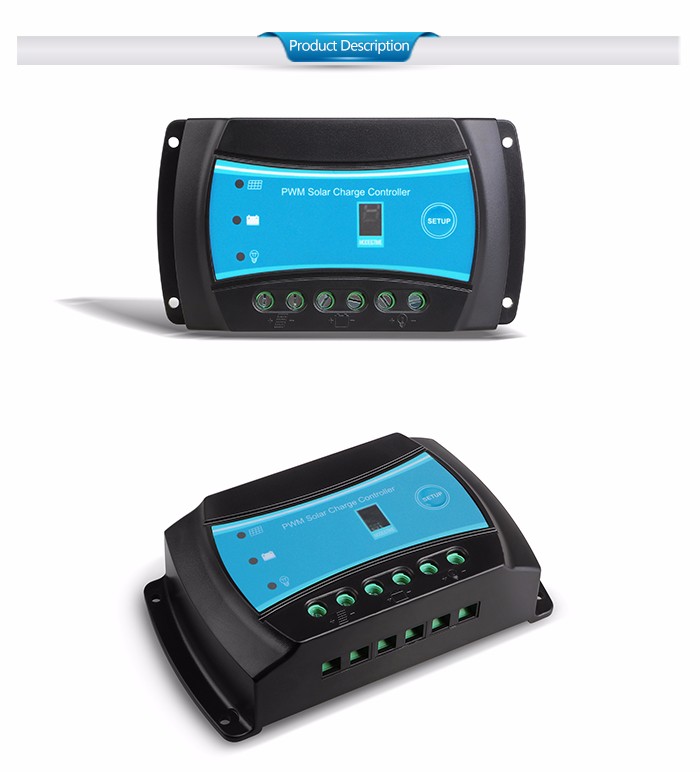

12V/24V 10A smart solar energy system controller with competitive
priceSR-LR
1.12V/24V Auto, mini size.
2.double time frame design, make the street light more flexible.
3.PWM charging mode.
4. various protective functions.
System voltage | 12V/24V Auto |
System current | 10A |
No-load loss | < 5mA/12V;7.5mA/24V |
Solar energy input voltage | < 55V |
Overvoltage protection | 17.0V; ×2/24V |
Equal charging voltage | 14.6V; ×2/24V(25°C), duration:1h |
Ascending charging voltage | 14.4V; ×2/24V(25°C), duration:2h |
Float charging voltage | 13.8V; ×2/24V (25°C) |
Return voltage during charging | 13.2V; ×2/24V (25°C) |
Return voltage for over-discharging | 12.5V; ×2/24V |
Undervoltage | 12.0V; ×2/24V |
Over-discharging voltage | 11.1V; ×2/24V |
Temperature compensation | -4.0mv/°C/2V; |
Light-control voltage | Light-control open 8V; light-control close 9V |
Light-control judgment time | 10min |
Circuit protection | Over-charge, over-discharge, short circuit and over-load protection |
Anti- connection-reverse protection for solar battery and storage
battery. |
Working temperature | -35°C to +65°C; |
Protection level | IP30 |
Weight | 106g |
Dimensions | 124.7×69.4×34.0(mm)(L×W×H) |
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown
cartons. If you have legally registered patent, we can pack the
goods in your branded boxes after getting your authorization
letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the
photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your
advance payment. The specific delivery time depends on the items
and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We
can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but
the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
