Features of SR-HM-CU10A

1. Identify 12V/24V system voltage automatically.
2. LED indicates the working status of battery and load.
3. Double USB output charging for various electronic products. Max load current reach up to 1.2A.
4. LCD screen could show charge current, discharge current and capacity of the battery.
5. Adopting advanced ternary form charging algorithm, equalizing charge for battery once a week to prevent battery from imbalance and vulcanization effectively so that the battery service life will be extended.
6. Manual control for the load.
7. External temperature sensor can realize high-precision temperature compensation
8. Various protections: Over charging protection, over discharging protection, over load, short circuit protection, reverse polarity protection, TVS lightning protection

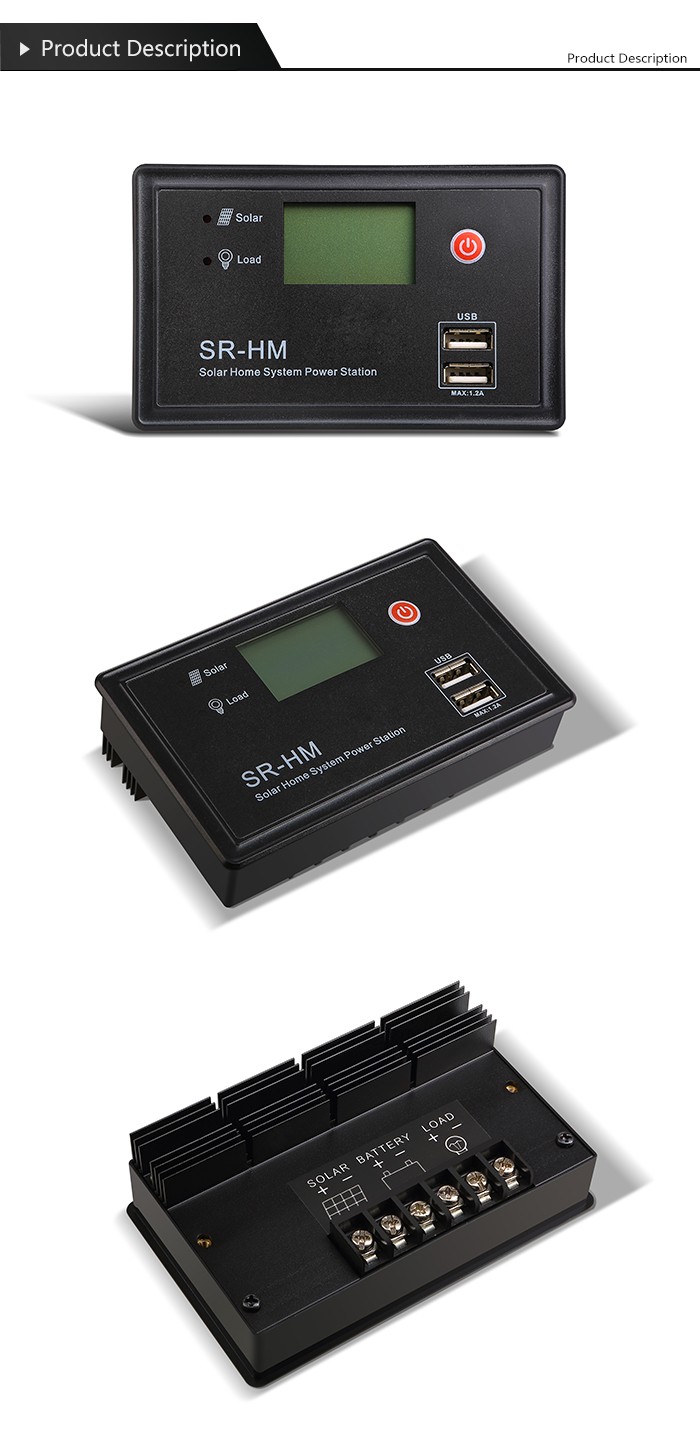

Product Description
12v 24v Lithium Battery PWM MPPT Charger Solar light Solar charge Controller
Features :

1). Advanced MPPT technology

2). High tracking efficiency up to 99.9%

3). Peak conversion efficiency of 98.4%

4). Ultra-fast tracking speed

5). Accurately recognizing and tracking MPP of multiple wave crest

6). Automatic PV power limit function

7). Multi-function LCD displays system information intuitively

8). User programmable for battery types, load control etc.

9). 3-Stage charge with MPPT charging

10). Common positive grounding design

11).Fully programmable function via remote meter, PC software and Mobile APP.

12). Waterproof IP68 garde without any button.

Parameter of SR-HM-CU10A
