60A Lithium Battery Solar Charge Controller Automatic
Identification System
Automatic identification system voltage function solar charger
controller
Product Description
Features of SR-HP2450/2460
1. Automatic identification system voltage 2. Charging program options for sealed, GEL and flooded lead-acid
batteries and lithium batteries are available. 3. An upgraded 3-stage PWM charging algorithm is adopted.
Application of an equalizing charge to the battery periodically or
when over discharged, can effectively prevent the battery from
non-equalization and sulfuration, thus extending the battery's
service life (with the exception of GEL and lithium batteries). 4. With temperature compensation employed, charging parameters can
be automatically adjusted (with the exception of lithium
batteries). 5. By virtue of an advanced load starting method, large-capacitance
loads can be started smoothly. 6. A range of parameter settings and power-down saving functions
are available ,thus requiring no repeated setting. 7. The product provides a dot matrix graphic LCD screen and a
human-machine interface with 2 keys. 8. The user-friendly design of browser and dynamic interfaces
ensures convenient and intuitive operations.
Parameter of SR-HP2450/2460
Model
HP2450
HP2460
Rated current
50A
60A
System voltage
Automatic recognition of 12V/24V
Rated power
12V/750W
24V/1500W
12V/900W
24V/1800W
No-load loss
< 13mA/12V;< 15mA/24V
Max. Solar energy input voltage
<55
Max. voltage at the battery end
<34V
Overvoltage protection
16.0V
Charging recovery voltage
13.2V
Over-discharge recovery voltage
12.5V(settable with the keys)
Over-discharge voltage
11.0V(settable with the keys)
Boost charging time
2H
Temperature compensation
-3.0mV/℃/2V
Light control voltage
Light control on 5V, light control off 6 V (light control on plus 1
V)
Light control judgment time
10 minutes
USB function
NO
Operating temperature
-25℃~+55℃
IP protection degree
IP30
Net weigh
650g
Protection functions
attery reverse connection protection, solar panel reverse
connection protection Notice 1, reverse charging protection at
night ,Charging overload protection, overcurrent protection , short
circuit protection
Dimensions
189.27×127.2×54.0 (mm)

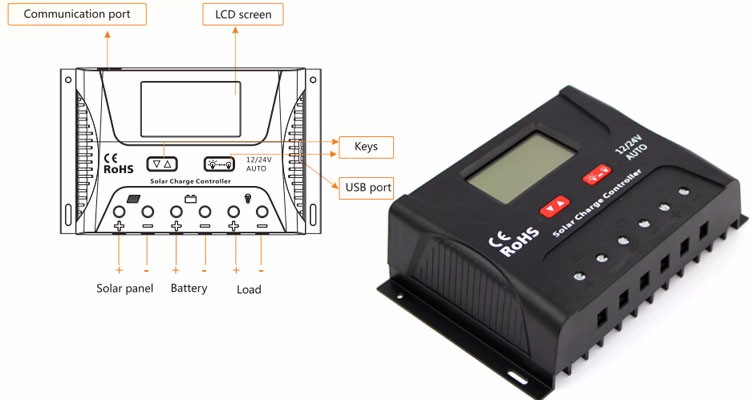

Detail of SR-HP2450/2460
FAQ:
Q: what kind of certificates you have for your solar controllers ? SRNE:Our solar controller has CE,ROHS,ISO9001 certificates
approved.
Q: Are you a manufacturer or trading company? SRNE:We are a state-level high-tech enterprise that integrates
pluralism, R&D and manufacturing as one with PV controller,PV inverter,PV energy storage oriented.And we have our own factory.
Q: Can I buy one sample for testing? SRNE:Sure,we have a 8 years experience R&D team and in timely
after sale service,can help u fix any technicial problem or
confusion.
Q: How are about the delivery? SRNE: Sample: 1-2 working days Order: within 7 working days depending on the order quantities OEM Order: 4-8 working days after confirming the sample
Q: How're about your customers service? SRNE:All solar controllers will be tested strictly one by one
before leaving factory,And the defective rate is below 0.1%.we do try our best to provide a good customer service.
SRNE SOLAR CO., LTD, established in 2009,is a state level high-tech
enterprise that integrates R&D, manufacturing and sales of
solar charge controller, solar lighting controller, offgrid hybrid
inverter, etc. At present,SRNE is the world’s leading supplier of
solar controller.SRNE products won the global customers’ trust
because of the stable running and excellent performance, Which is
not only popular in China, but also North America, Europe,
Australia, Africa, Southeast Asia and other region.n 2017, SRNE
enter into offgrid hybrid inverter market. After detailed product
planning and long-term developing cycle, SRNE offgrid hybrid
inverter is ready to come into the market.R&D and product
based, along with the excellent after-sale service, SRNE are
devoting to promote the new age of solar applications.
