Caravan system solar charge Controller with bluetooth function SRNE MC2450N10

Product Overview

• MC2450N10 comes with common negative ground, it could be used for RV, caravan system and marine system etc. LED fault indicators which can display abnormality information help users to quickly identify system faults. And the external LCD screen RM-6 and Bluetooth BT-2 module can be connected with the controller to view operating data and status and modify the controller parameters.

• The working temperature would be -35°C to +45°C, with built-in over-temperature protection ensures that the charging amps decreases linearly with the temperature once temperature exceeds the rated value, which avoid the high temperature damage of controller.

• It features a lot of product Protections, such as: Solar panel short circuit protection, PV input reverse polarity protection, battery open circuit protection and TVS lightening protection etc.

Electric Parameters

Application:

Ideal for off-grid solar lighting system that needs light and timer control
Solar street light system
Solar garden light system
Solar billboard
Solar detection equipment etc.

Model:MC2450N10；

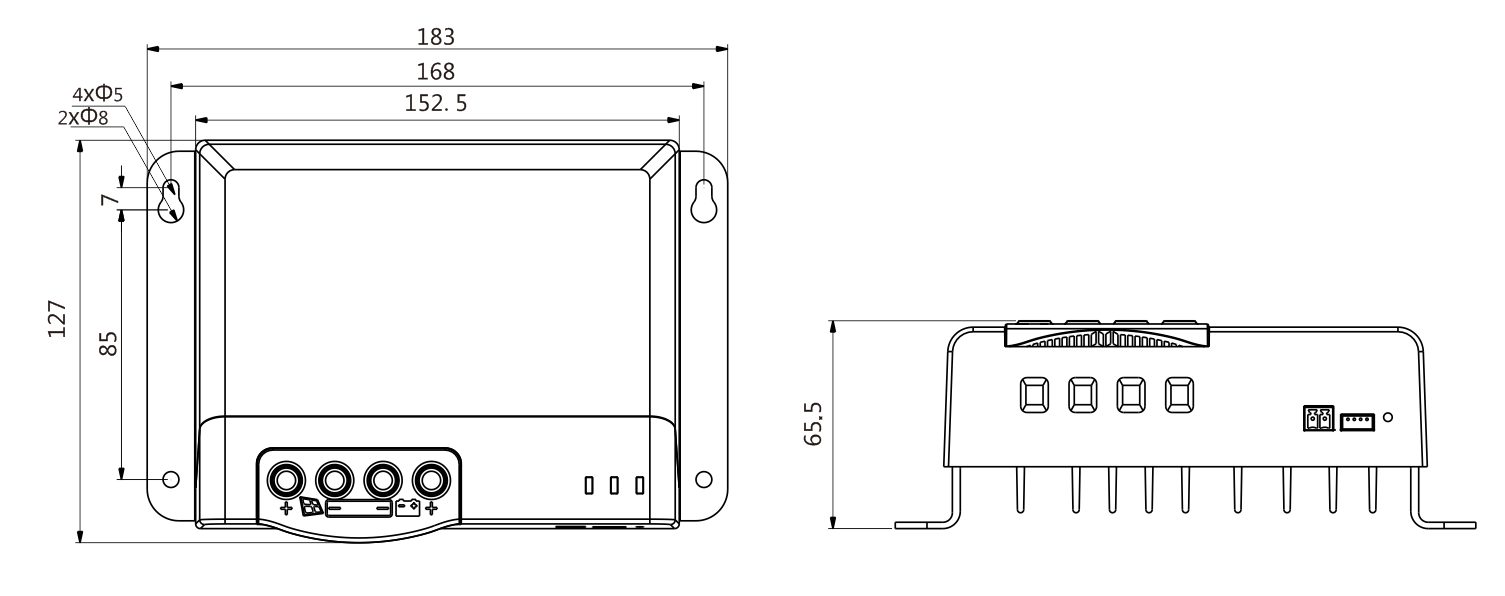

Outline dimensions:183*127*69.5mm；
Mounting dimensions:168*85mm；
Fixed holes dia:Φ5mm；
Wire specifications:20-6AWG.

SRNE SOLAR CO., LTD, established in 2009,is a state level high-tech enterprise that integrates R&D, manufacturing and sales of solar charge controller, solar lighting controller, offgrid hybrid inverter, etc. At present,SRNE is the world’s leading supplier of solar controller.SRNE products won the global customers’ trust because of the stable running and excellent performance, Which is not only popular in China, but also North America, Europe, Australia, Africa, Southeast Asia and other region.n 2017, SRNE enter into offgrid hybrid inverter market. After detailed product planning and long-term developing cycle, SRNE offgrid hybrid inverter is ready to come into the market.R&D and product based, along with the excellent after-sale service, SRNE are devoting to promote the new age of solar applications.
