Waterproof Solar Street Light Controller With Record And Monitor
Function
MPPT Street light solar power controller with record and monitor
function and motion sensor
Product Description
Features of SR-MES60
1. Exclusive controller for Lithium Battery, which suit for ternary
Lithium, Lithium iron battery, Lithium cobalt oxides battery, etc.
2. Normal working+Sensitive+Morninglight mode design and working
time can be set range from 0h to 15hours,power range from 0~100%.
3. Human infrared induction or microwave induction function.
4. Intelligent power mode, the load power can be adjusted
automatically according to the battery power, can extend the
maximum working time of the battery.
5. Digital high precision constant-current control, the maximum
efficiency can reach 96%.
10. ecord the system status, can record at a max 7days and monitor
the whole system.
6. Metal case, IP68 waterproof degree, can be used in all kinds of
bad conditions.
7. Overheat protection function, when the controller reaches a
certain temperature, it will decrease or close the load.
8. Varies system protection. Including the battery reverse
connection, LED short circuit, open circuit protection and so on
Application
Solar Station System
Solar power station systems are typically used for regional
centralized power supply, such as village, island, fields
monitoring and so on. Also the power level range is between
kilowatts to hundreds kilowatts.
Solar Home System
Solar home system are typically used for home photovoltaic power
generation system, to solve electricity demand of none power or
unstable power region. Also the power level rage is between hundred
watts to kilowatts.
Solar RVs/Vessels System
Solar RVs/Vessels system are typically used for reducing the RVs
and the vessels electricity cost, by setting up solar system to
assist gasoline/diesel power generator.
Parameter of SR-MES60
Name | Value |
Model | SR-MES60-WB | SR-MES60-IR |
System voltage | 12V |
Output power | 60W/12V |
Output current | 0.15A~1.98A |
No load loss | 12V:14mA; 24V:25mA | 12V:11mA; 24V:21mA |
Charging current | 8A |
PV input voltage | < 55V |
LED driver efficiency | 90% ~ 96% |
Over-voltage protection | Over-charging voltage +2V;×2/24V |
Charging limited voltage | Over-charging voltage +1V;×2/24V |
Over-charging voltage | 9.0V ~ 17.0V;×2/24V |
Over-charging recovery voltage | 9.0V ~ 17.0V;×2/24V |
Over discharge voltage | 8.0V ~ 17.0V;×2/24V |
Discharging recovery voltage | 9.0V ~ 17.0V;×2/24V |
Current precision | ±3%(Load current>300mA |
Load output voltage | <60V |
Over-temperature protection(environment) | 80℃ (Load power decreased) |
Over-temperature protection(Inner) | 120℃(Load closed) |
Light- control voltage | 5V ~ 11V |
Light-control delayed time | 0min ~ 50min |
Induction delayed time | 0S~ 150S |
Working temperature | -35℃ ~ +65℃; |
Induction range | Vertical: 8M,horizontal: 10M | Vertical: 6M,horizontal:7M |
Waterproof degree | IP68 |
Weight | 210g |
Dimension(mm) | 58*82*20 |
The probe lead length(mm) | 320 |

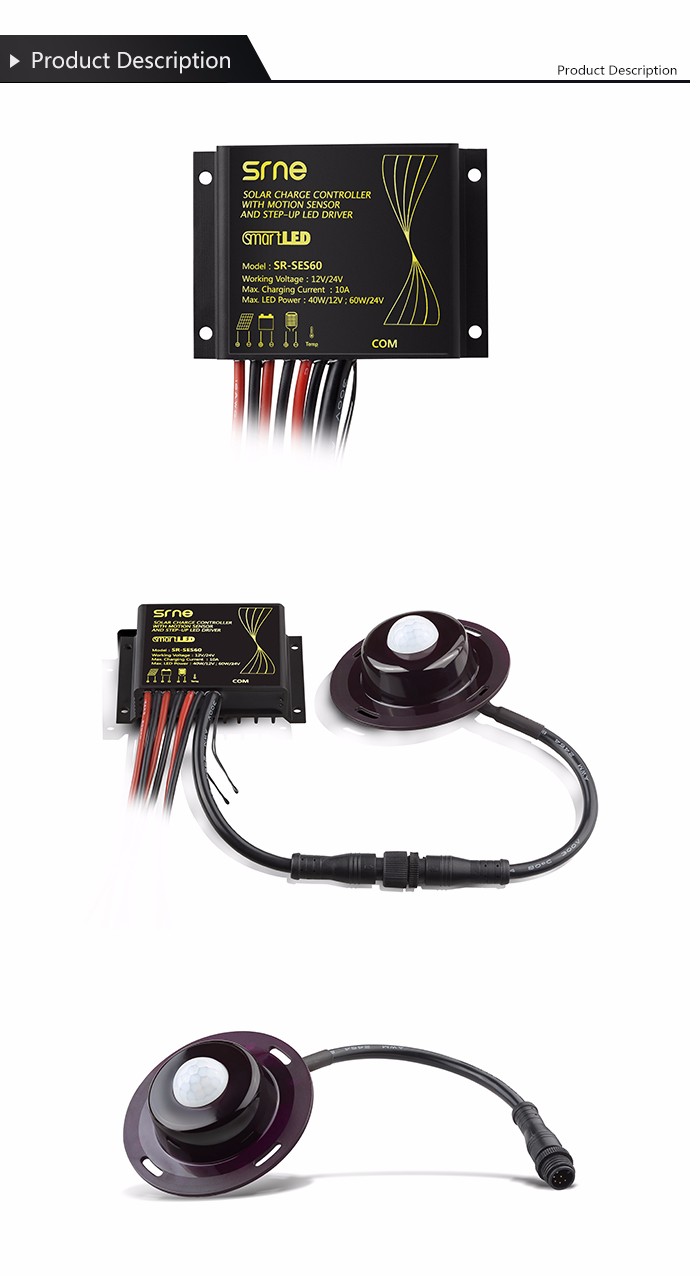

Detail of SR-MES60
Why choose us?
SRNE, as a high-tech enterprise with the government support ,and
with own R&D team as well as factory, has become the famous
brand and the experts of PV storage management and control, we
always insist on good quality, professional service and leading
technology. Besides, customer can purchase premium products with
favorable prices from us.
Our R&D team and service: in SRNE, there' re some technicians
having more than 10 years experience in the field of solar
controller and all the products we design are the trend of market
development.
Our tenet is continuously in pursuit of warm customer service.
FAQ:
Q: what kind of certificates you have for your solar controllers ?
SRNE:Our solar controller has CE,ROHS,ISO9001 certificates
approved.
Q: Are you a manufacturer or trading company?
SRNE:We are a state-level high-tech enterprise that integrates
pluralism, R&D and manufacturing as one with PV controller,PV
inverter,PV energy storage oriented.And we have our own factory.
Q: Can I buy one sample for testing?
SRNE:Sure,we have a 8 years experience R&D team and in timely
after sale service,can help u fix any technicial problem or
confusion.
Q: How are about the delivery?
SRNE:
Sample:
1-2 working days
Order: within 7 working days depending on the order quantities
OEM Order: 4-8 working days after confirming the sample
Q: How're about your customers service?
SRNE:All solar controllers will be tested strictly one by one
before leaving factory,And the defective rate is
below 0.1%.we do try our best to provide a good customer service.
