Features of SR-SES60
1. Exclusive controller for Lithium Battery, which suit for ternary
Lithium, Lithium iron battery, Lithium cobalt oxides battery, etc.
2. Normal working+Sensitive+Morninglight mode design and working
time can be set range from 0h to 15hours,power range from 0~100%.
3. Human infrared induction or microwave induction function.
4. Sensitive time delay can be set range from 0s~150s
5. Unique Lithium battery which is automatically actuated.
6. Flexible charging mode, equalizing charge or PWM charge auto
switch.
7. ecord the system status, can record at a max 7days and monitor
the whole system.
8. Metal case, IP68 waterproof degree, can be used in all kinds of
bad conditions.
9. Overheat protection function, when the controller reaches a
certain temperature, it will decrease or close the load.
10. Varies system protection. Including the battery reverse
connection, LED short circuit, open circuit protection and so on
we have rich experience in handiling orders for heavy buyers with
professional process.
- Stable raw material purchasing
- Favorable orders follow-up management
- Laudable lead-time & shipment control
- Traceable quality evaluation
- Flexible payment terms
- Remarkable after-sale service
Parameter of SR-SES60
Name | Value |
Model | SR-SES60-WB | SR-SES60-IR |
System voltage | 12V/24V |
Output power | 40W/12V;60W/24V |
Output current | 0.15A~1.98A |
No load loss | 12V:14mA; 24V:25mA | 12V:11mA; 24V:21mA |
Charging current | 10A |
PV input voltage | < 55V |
LED driver efficiency | 90% ~ 96% |
Over-voltage protection | Over-charging voltage +2V;×2/24V |
Charging limited voltage | Over-charging voltage +1V;×2/24V |
Over-charging voltage | 9.0V ~ 17.0V;×2/24V |
Over-charging recovery voltage | 9.0V ~ 17.0V;×2/24V |
Over discharge voltage | 8.0V ~ 17.0V;×2/24V |
Discharging recovery voltage | 9.0V ~ 17.0V;×2/24V |
Current precision | ±3%(Load current>300mA |
Load output voltage | <60V |
Over-temperature protection(environment) | 80℃ (Load power decreased) |
Over-temperature protection(Inner) | 120℃(Load closed) |
Light- control voltage | 5V ~ 11V |
Light-control delayed time | 0min ~ 50min |
Induction delayed time | 0S~ 150S |
Working temperature | -35℃ ~ +65℃; |
Induction range | Vertical: 8M,horizontal: 10M | Vertical: 6M,horizontal:7M |
Waterproof degree | IP68 |
Weight | 210g |
Dimension(mm) | 58*82*20 |
The probe lead length(mm) | 320 |

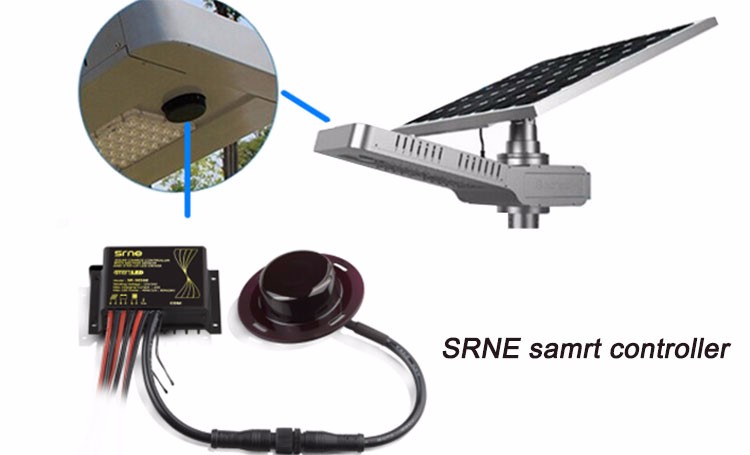

Detail of SR-SES60
Application of SR-SES60
FAQ:
Q: what kind of certificates you have for your solar controllers ?
SRNE:Our solar controller has CE,ROHS,ISO9001 certificates
approved.
Q: Are you a manufacturer or trading company?
SRNE:We are a state-level high-tech enterprise that integrates
pluralism, R&D and manufacturing as one with PV controller,PV
inverter,PV energy storage oriented.And we have our own factory.
Q: Can I buy one sample for testing?
SRNE:Sure,we have a 8 years experience R&D team and in timely
after sale service,can help u fix any technicial problem or
confusion.
Q: How are about the delivery?
SRNE:
Sample:
1-2 working days
Order: within 7 working days depending on the order quantities
OEM Order: 4-8 working days after confirming the sample
Q: How're about your customers service?
SRNE:All solar controllers will be tested strictly one by one
before leaving factory,And the defective rate is
below 0.1%.we do try our best to provide a good customer service.
