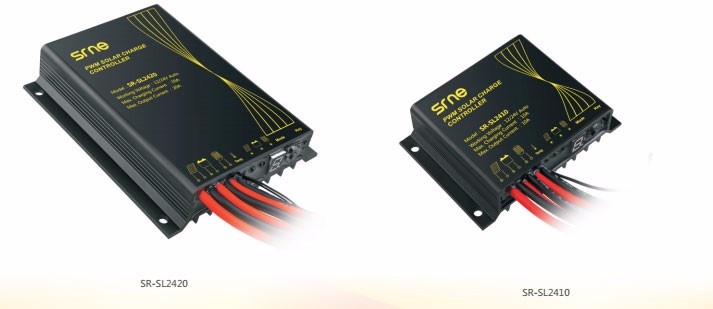

10a Solar Street Light Controller Input 55V Max Solar Panel
Controller SL2410
10a pwm street light controller use for led light with led driver
SL2410
Product Description
Features of SR-SL
1. The design of IP68 waterproof level and aluminum shell helps
effectively prevent erosion. 2. 12 V/24 V system voltage. 3. LED numeric display and waterproof keys are easy to use. 4. An upgraded 3-stage PWM charging algorithm applies an equalizing
charge to the battery every week, effectively preventing the
battery from non-equalization and sulfuration and therefore
extending the battery's service life. 5. Up to 5 load working modes facilitate the product's application
to different types of road lamps and monitoring devices. 6. Charging program options are available for sealed, GEL and
flooded lead-acid batteries and ternary-material lithium and
lithium iron phosphate batteries. 7. An external temperature sensor helps deliver high-precision
temperature compensation. 8. Parameter settings of power-down saving functions eliminate the
trouble of repeated settings, making operation easy and convenient. 9. Various kinds of state indicators. 10. Overcharge, over-discharge and overload protection, as well as
short-circuit and reverse-connection protection. 11. TVS lighting protection.
Parameter of SR-SL
Battery type
Sealed
GEL
Flooded
Ternary-material lithium
Lithium iron phosphate
System current
10 A; 20 A
No-load loss
10 mA/ 12 V; 13 mA/ 24 V
Solar energy input voltage
< 55 V
System voltage
12 V/ 24 V Auto
12 V/ 24 V Auto
12 V/ 24 V Auto
3 and 4 strings: 12 V system
7 strings: 24 V system
4 strings: 12 V system
8 strings: 24V system
Overvoltage protection
17.0 V
17.0 V
17.0 V
4.2 V * N + 2.0 V
3.65 V * N + 2.0 V
Equalizing charging voltage
14.6 V
-
14.8 V
-
-
Boost charging voltage
14.4 V
14.2 V
14.6 V
-
-
Floating charging voltage
13.8 V
13.8 V
13.8 V
-
-
Overcharge voltage
-
-
-
4.2 V * N
3.65 V * N
Overcharge recovery
-
-
-
3.9 V * N
3.4 V * N
Boost charging recovery voltage
13.2 V
13.2 V
13.2 V
-
-
Over-discharge recovery voltage
12.5 V
12.5 V
12.5 V
3.3 V * N
3.0 V * N
Undervoltage
12.0 V
12.0 V
12.0 V
3.2 V * N
2.8 * N
Over-discharge voltage
11.0 V
11.0 V
11.0 V
3.0 V * N
2.5 V * N
Temperature compensation
-4.0 mv/°C/ 2 V
-
-
Equalizing charging duration
1 hour
-
1 hour
-
-
Boost charging duration
4 hours
4 hours
4 hours
-
-
Light controlled voltage
Light controlled on 5 V, light controlled off 6 V
Light control judgment time
1 min
Overload and short-circuit protection
1.25 times of rated current: 30 s;
1.5 times of rated current: 5 s of overload protection;
Over 3 times of rated current: short-circuit protection.
Operating temperature
-35°C to +65°C;
Protection degree
IP68
Weight
140 g (10 A) 300 g (20 A)
Dimensions
82×58×20 (mm)/ 10 A; 82×100×20 (mm)/ 20 A
Why choose solar panel? Reliability When you install solar panels on your home with a battery charger,
then your flow of electricity becomes more reliable. If an outage
occurs due to a natural disaster or a human accident that knocks
out power lines, then you have energy to power your refrigerator,
air conditioning and other important appliances and electronics.
This offsets the difficulty of getting energy on cloudy days. Low Maintenance Solar panels have almost no moving parts which makes them easier to
maintain. As a homeowner, you would only need to clean the panels
on a regular basis and this activity does not require any special
training or cleaners. If the panels are ever damaged by other
parties or the weather, repairs are usually quick and inexpensive. Technological Development As a user of solar panels, you would be contributing to further
development of solar panels. While this may not directly impact
your pocket book, it does mean you would be making home energy more
efficient for your children and other generations to come. This
development is often why local and national governments will offer
rebates for home owners with solar panels.

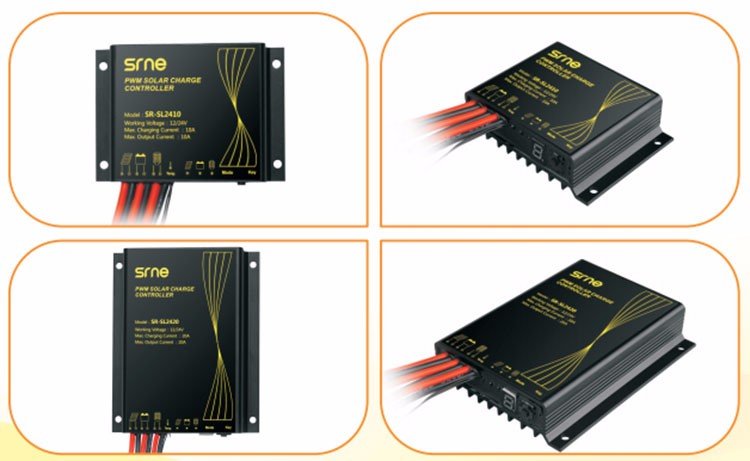

Detail of SR-SL
Application of SR-SL
Certificete of SR-SL

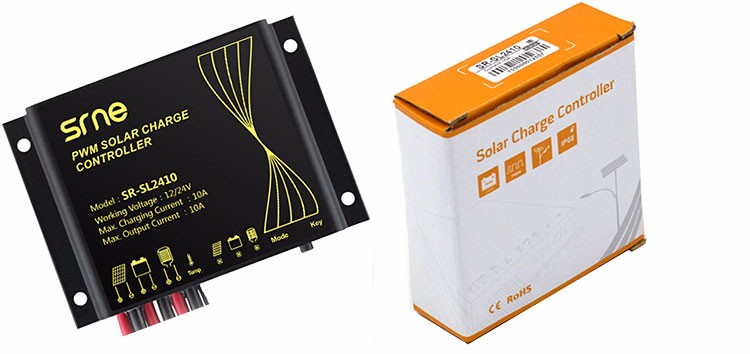

Packaging & Shipping
Packing of SR-SL
carton size
package situation
335*295*240mm
42 pieces in a carton
Our Services
Company Information
Shenzhen Shuori New Energy technology Co.,Ltd.has founded in 2009
with independent intellectual property,right and brand .We set
R&D,manufacture,sales and service as a whole ,specialized in
solar controller,system solutions,application system and
engineering service,solar PV power supply related technology
development of national high tech enterprise.
Why choose us? SRNE, as a high-tech enterprise with the government support ,and
with own R&D team as well as factory, has become the famous
brand and the experts of PV storage management and control, we
always insist on good quality, professional service and leading
technology. Besides, customer can purchase premium products with
favorable prices from us. Our R&D team and service: in SRNE, there' re some technicians
having more than 10 years experience in the field of solar
controller and all the products we design are the trend of market
development. Our tenet is continuously in pursuit of warm customer service.
FAQ:
Q: what kind of certificates you have for your solar controllers ? SRNE:Our solar controller has CE,ROHS,ISO9001 certificates
approved.
Q: Are you a manufacturer or trading company? SRNE:We are a state-level high-tech enterprise that integrates
pluralism, R&D and manufacturing as one with PV controller,PV inverter,PV energy storage oriented.And we have our own factory.
Q: Can I buy one sample for testing? SRNE:Sure,we have a 8 years experience R&D team and in timely
after sale service,can help u fix any technicial problem or
confusion.
Q: How are about the delivery? SRNE: Sample: 1-2 working days Order: within 7 working days depending on the order quantities OEM Order: 4-8 working days after confirming the sample
Q: How're about your customers service? SRNE:All solar controllers will be tested strictly one by one
before leaving factory,And the defective rate is below 0.1%.we do try our best to provide a good customer service.
