12 Volt Solar Panel Controller Mppt Solar Charge Controller For Lithium Batteries

    Buy cheap 12 Volt Solar Panel Controller Mppt Solar Charge Controller For Lithium Batteries from wholesalers

    Buy cheap 12 Volt Solar Panel Controller Mppt Solar Charge Controller For Lithium Batteries from wholesalers
    • Buy cheap 12 Volt Solar Panel Controller Mppt Solar Charge Controller For Lithium Batteries from wholesalers
    • Buy cheap 12 Volt Solar Panel Controller Mppt Solar Charge Controller For Lithium Batteries from wholesalers
    • Buy cheap 12 Volt Solar Panel Controller Mppt Solar Charge Controller For Lithium Batteries from wholesalers
    • Buy cheap 12 Volt Solar Panel Controller Mppt Solar Charge Controller For Lithium Batteries from wholesalers

    12 Volt Solar Panel Controller Mppt Solar Charge Controller For Lithium Batteries

    Ask Lasest Price
    Brand Name : SRNE/OEM/ODM
    Model Number : SR-MT10A
    Supply Ability : 1000 Piece/Pieces per Month
    Price : Negotiable
    • Product Details
    • Company Profile

    12 Volt Solar Panel Controller Mppt Solar Charge Controller For Lithium Batteries

    12 Volt Solar Panel Controller Mppt Solar Charge Controller For Lithium Batteries


    SRNE high quality 10A 12V/24V mppt solar regulator solar charge controller

    Product Description

    Features:

    1. Adopting double crest or multi crest tracing technique, used for the condition when a part of solar panel is under shadow or parts of solar panel is damage.

    2. Built-in maximum power point tracking algorithm which could promote the energy utilization efficiency of pv system. The charging efficiency is 15%~20% higher than PWM mode.

    3. It can find out the best working point of I-V curve within 1 minute. the MPPT efficiency could reach to 99.9%.

    4. Adopting advanced digital power supply techniqueswhich makes the energy conversion efficiency reach up to 97%.

    5. Fourcharging stages: MPPT -equalizingcharge-boosting charge-floating charge.

    6. With current-limiting charging mode. When the power of solar panel is oversized, the controller will lower charging power automatically, which enable the system to work under the rated charging current. 7.Have the fault code indication, it helps user confirm the system fault.


    Our Advantages
    1. Mini size, high power density.
    2. Various load control methods. Latest design 12v 24v 48v solar system controller
    3. Built-in maximum power point trackingalgorithm which could promote the pvsystem’s energy
    utilization efficiency. Thecharging efficiency is 15%~20% higherthan PWM mode.
    4. Adopting advanced digital power supplytechnology which make the energyconversion efficiency reach up to 97%

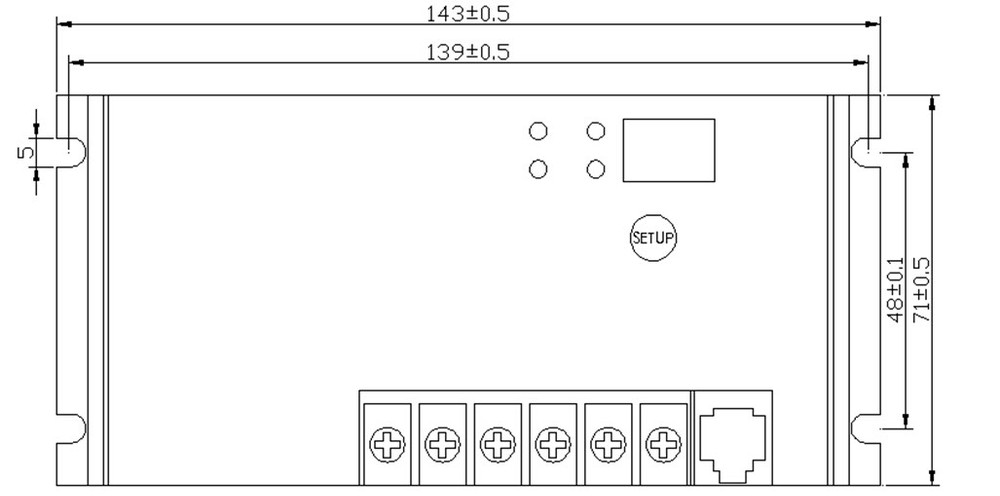

    Front View Schematic

    12 Volt Solar Panel Controller Mppt Solar Charge Controller For Lithium Batteries

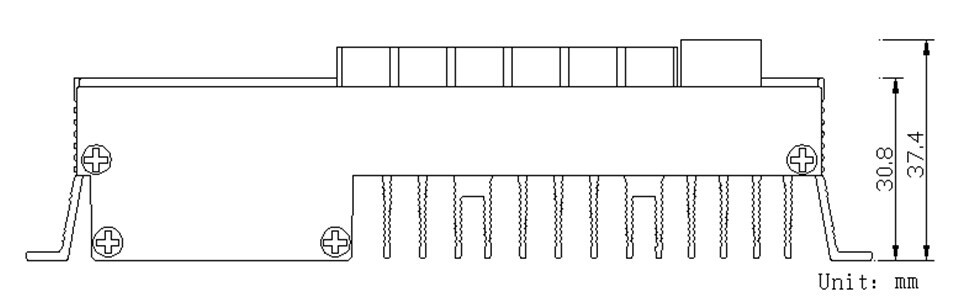

    Structure Drawing:


    12 Volt Solar Panel Controller Mppt Solar Charge Controller For Lithium Batteries12 Volt Solar Panel Controller Mppt Solar Charge Controller For Lithium Batteries

    Parameters


    Parameters

    Value

    Model

    SR-MT2410

    System voltage

    12V

    24V

    Max. input power of solar panel

    130W

    260W

    Transfer efficiency

    ≤96%

    ≤97%

    Rated charge/ discharge current

    10A

    No load loss

    <15mA

    Max. input voltage of solar panel

    <150V

    MPPT tracing efficiency

    >99%

    Over voltage protection

    16.5V

    33.0V

    Limited charge voltage

    15.5V

    31.0V

    Equalizing charge voltage

    15.2V

    30.4V

    Equalizing charge interval

    30 days

    Boosting charge voltage

    14.4V

    28.8V

    Floating charge voltage

    13.8V

    27.6V

    Over-discharge recover voltage

    12.5V

    25.0V

    Over discharge voltage

    11.0V

    22.0V

    Boosting charge time

    2 hours

    Equalizing charge time

    1 hour

    Over temperature protection

    Yes

    Light-operated voltage (on)

    5V

    Light-operated voltage (off)

    6V

    Light-operated delay time

    5min

    Working temperature

    -35℃~+65℃;

    Weight

    430g

    Altitude

    ≤3000m

    Dimension

    143*71*37.4 (mm)

    Installation dimension

    139*48(mm)

    Overload protection

    Load current≥1.25 times rated current, cut off the load within 10 seconds; Load current≥1.5 times rated current, cut off the load within 5 seconds

    Protections

    1.Reverse connection. 2.Inner over temperature. 3.The voltage of PV input terminal is over value. 4.Over load 5.Reverse charging protection at night. 6. TVS lightning protection 7. Waterproof: IP 64



    Our Services

    12 Volt Solar Panel Controller Mppt Solar Charge Controller For Lithium Batteries

    Company Information


    Shenzhen Shuori New Energy technology Co.,Ltd.has founded in 2009 with independent intellectual property,right and brand .We set R&D,manufacture,sales and service as a whole ,specialized in solar controller,system solutions,application system and engineering service,solar PV power supply related technology development of national high tech enterprise.


    12 Volt Solar Panel Controller Mppt Solar Charge Controller For Lithium Batteries12 Volt Solar Panel Controller Mppt Solar Charge Controller For Lithium Batteries

    Why choose us?
    SRNE, as a high-tech enterprise with the government support ,and with own R&D team as well as factory, has become the famous brand and the experts of PV storage management and control, we always insist on good quality, professional service and leading technology. Besides, customer can purchase premium products with favorable prices from us.
    Our R&D team and service: in SRNE, there' re some technicians having more than 10 years experience in the field of solar controller and all the products we design are the trend of market development.
    Our tenet is continuously in pursuit of warm customer service.


    FAQ:

    Q: what kind of certificates you have for your solar controllers ?
    SRNE:Our solar controller has CE,ROHS,ISO9001 certificates approved.

    Q: Are you a manufacturer or trading company?
    SRNE:We are a state-level high-tech enterprise that integrates pluralism, R&D and manufacturing as one with PV controller,PV
    inverter,PV energy storage oriented.And we have our own factory.

    Q: Can I buy one sample for testing?
    SRNE:Sure,we have a 8 years experience R&D team and in timely after sale service,can help u fix any technicial problem or confusion.

    Q: How are about the delivery?
    SRNE:
    Sample:
    1-2 working days
    Order: within 7 working days depending on the order quantities
    OEM Order: 4-8 working days after confirming the sample

    Q: How're about your customers service?
    SRNE:All solar controllers will be tested strictly one by one before leaving factory,And the defective rate is
    below 0.1%.we do try our best to provide a good customer service.
