12V 24V/48v 10A/20A/30A 40a 50a/60a solar charger controller pwm
solar Controller manual PWM Solar Charge Controller
Product Description

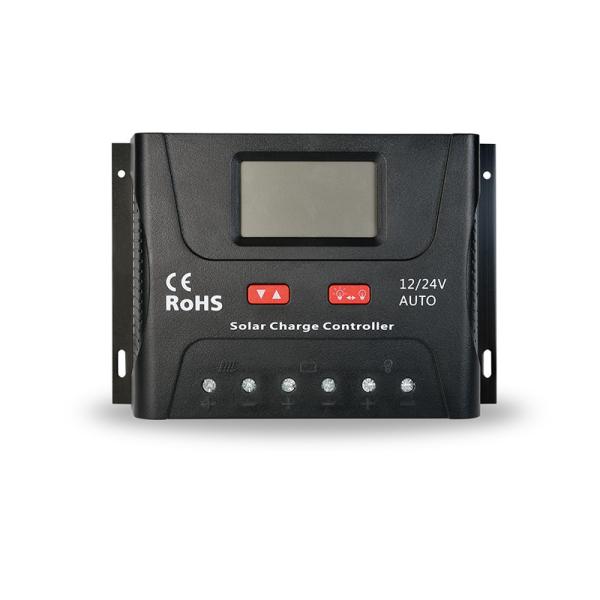

Features of SR-HP2450/2460
1. Automatic identification system voltage 2. Charging program options for sealed, GEL and flooded lead-acid
batteries and lithium batteries are available. 3. A wide range of load working modes facilitate the product's
application to different types of street lights and monitoring
devices. 4. The product provides overcharge, over-discharge, overload
protection, as well as short-circuit and reverse-connection
protection. 5. By virtue of an advanced load starting method, large-capacitance
loads can be started smoothly. 6. A range of parameter settings and power-down saving functions
are available ,thus requiring no repeated setting. 7. (An optional communication function) provides a RJ12 data port
(output of TTL232 level or bluetooth signals), with the data
adopting the standard Modbus protocol, can be used together with
our upper computer Monitoring software or mobile phone APP. 8. Boasting an industrial grade design, the product can function
well in various tough conditions. 9. TVS lighting protection is adopted.
Advantage: 1. IP30,Strong and durable aluminum case 2. 12V/24V automatic recognition 3. Remote(infrared) Unit to configure,with LCD display 4. External temperature sensor, automatic temperature compensation 5. PWM voltage regulation use 3 stages of charging way 6. Battery type and protection level selection 7. Full automatic electronic protect function 8. 5 stages time could be adjusted
Parameter of SR-HP2450/2460
Model
HP2450
HP2460
Rated current
50A
60A
System voltage
Automatic recognition of 12V/24V
Rated power
12V/750W
24V/1500W
12V/900W
24V/1800W
No-load loss
< 13mA/12V;< 15mA/24V
Max. Solar energy input voltage
<55
Max. voltage at the battery end
<34V
Overvoltage protection
16.0V
Charging recovery voltage
13.2V
Over-discharge recovery voltage
12.5V(settable with the keys)
Over-discharge voltage
11.0V(settable with the keys)
Boost charging time
2H
Temperature compensation
-3.0mV/℃/2V
Light control voltage
Light control on 5V, light control off 6 V (light control on plus 1
V)
Light control judgment time
10 minutes
USB function
NO
Operating temperature
-25℃~+55℃
IP protection degree
IP30
Net weigh
650g
Protection functions
attery reverse connection protection, solar panel reverse
connection protection Notice 1, reverse charging protection at
night ,Charging overload protection, overcurrent protection , short
circuit protection
Dimensions
189.27×127.2×54.0 (mm)
Detail of SR-HP2450/2460
Why choose us? SRNE, as a high-tech enterprise with the government support ,and
with own R&D team as well as factory, has become the famous
brand and the experts of PV storage management and control, we
always insist on good quality, professional service and leading
technology. Besides, customer can purchase premium products with
favorable prices from us. Our R&D team and service: in SRNE, there' re some technicians
having more than 10 years experience in the field of solar
controller and all the products we design are the trend of market
development. Our tenet is continuously in pursuit of warm customer service.
FAQ:
Q: what kind of certificates you have for your solar controllers ? SRNE:Our solar controller has CE,ROHS,ISO9001 certificates
approved.
Q: Are you a manufacturer or trading company? SRNE:We are a state-level high-tech enterprise that integrates
pluralism, R&D and manufacturing as one with PV controller,PV inverter,PV energy storage oriented.And we have our own factory.
Q: Can I buy one sample for testing? SRNE:Sure,we have a 8 years experience R&D team and in timely
after sale service,can help u fix any technicial problem or
confusion.
Q: How are about the delivery? SRNE: Sample: 1-2 working days Order: within 7 working days depending on the order quantities OEM Order: 4-8 working days after confirming the sample
Q: How're about your customers service? SRNE:All solar controllers will be tested strictly one by one
before leaving factory,And the defective rate is below 0.1%.we do try our best to provide a good customer service.
